CS61C-Single Cycle CPU Control

Control and Status Registers

• CSRs 在 register file 中被分配（x0-x31）
  • 被用来monitor the status and performance
  • 上限可达4096 CSRs
• 不是ISA的一部分

System Instructions

• ecall
• ebreak
• fence

Datapath Control

Instruction Timing

IF、ID、ALU、MEM、WB五个阶段（后续流水线也是这个过程）

Control Logic Design

ROM(ReadOnly Memory)

Pipelining Hazards

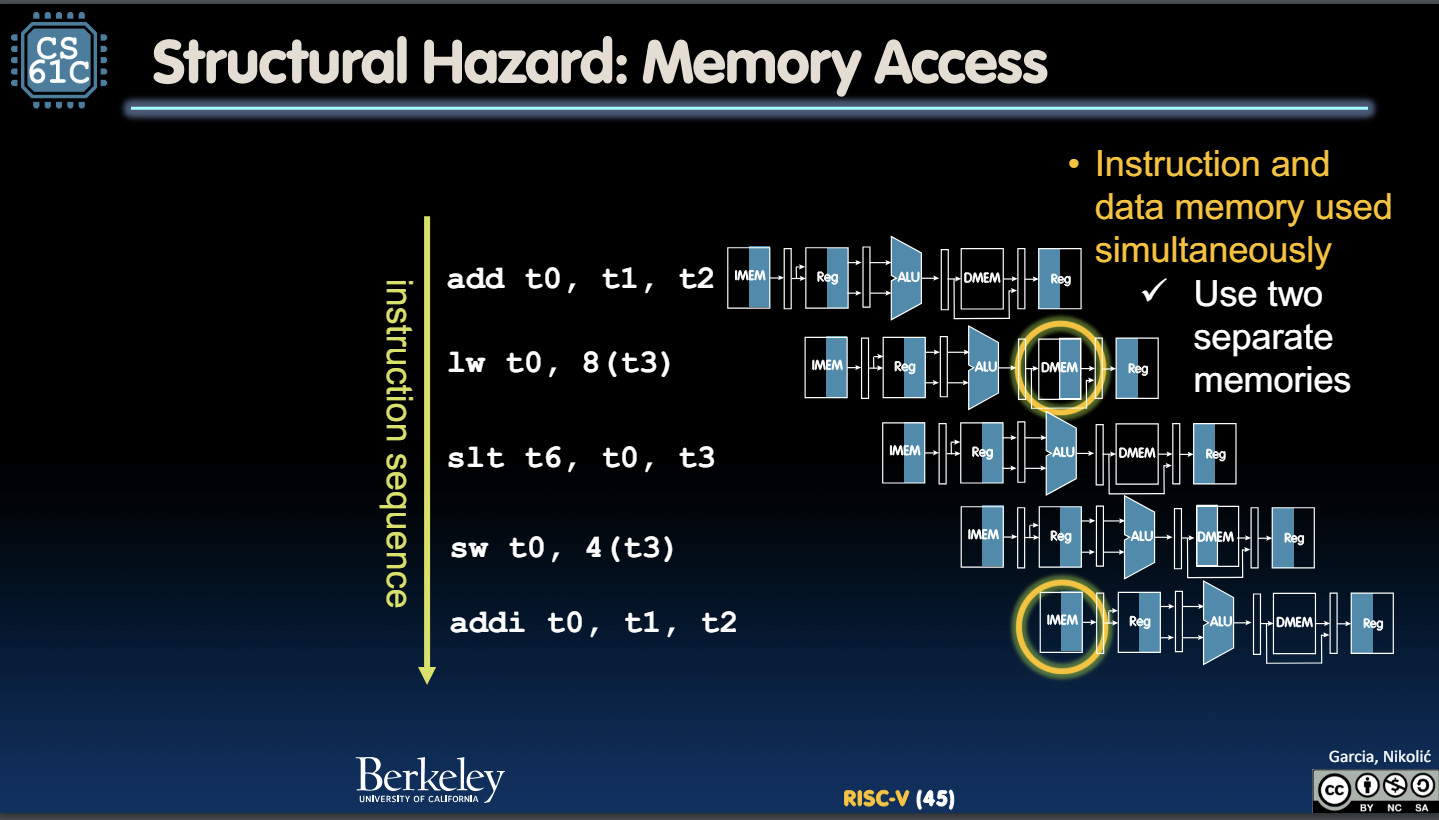

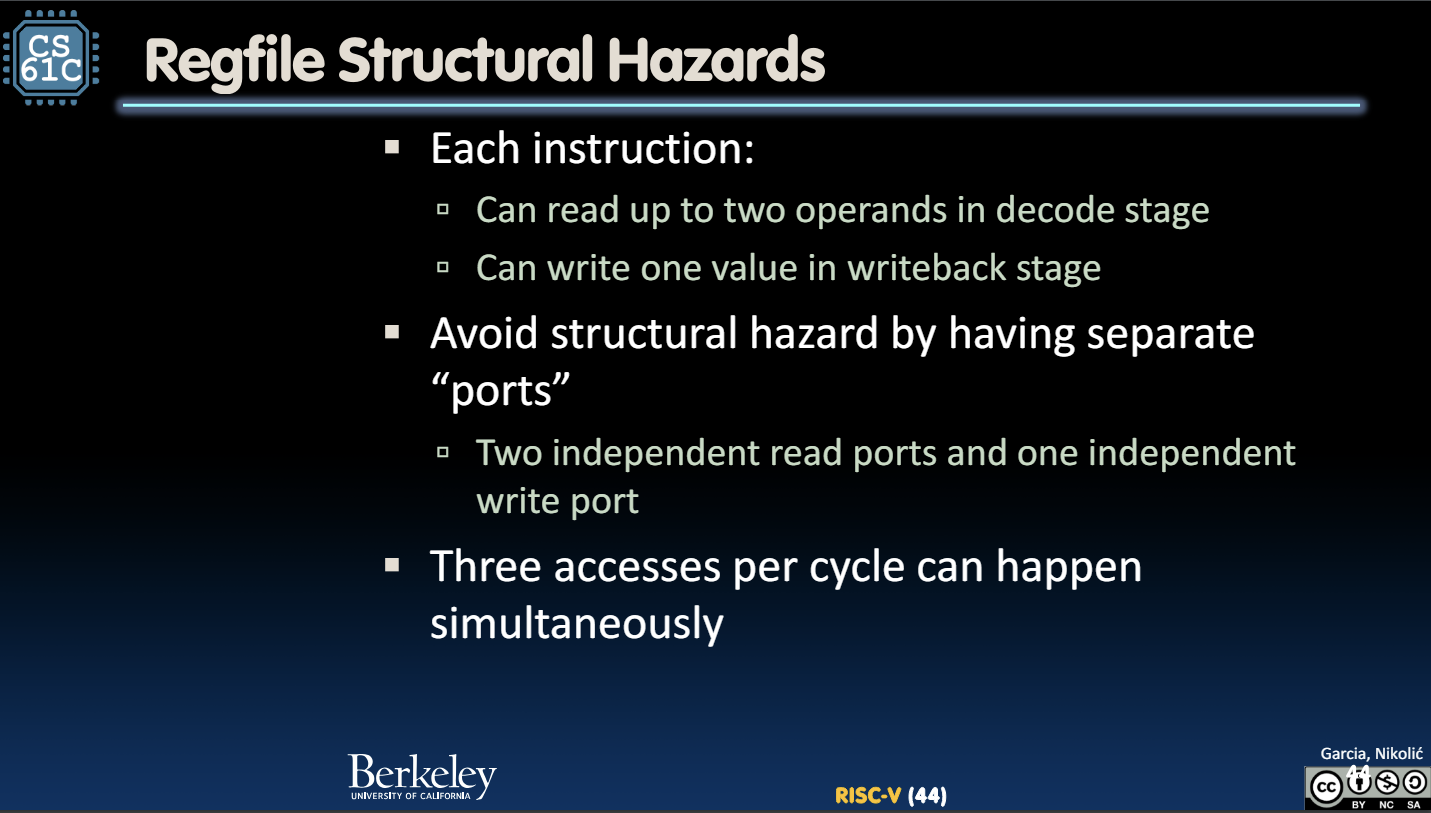

Structural Hazards

Two or more instructions in the pipeline compete for access to a single physical resource

Solutions：

• Instructions take it in turns to use resource, some instructions have to stall
• Add more hardware to machine，and can always solve a structural hazard by adding more hardware

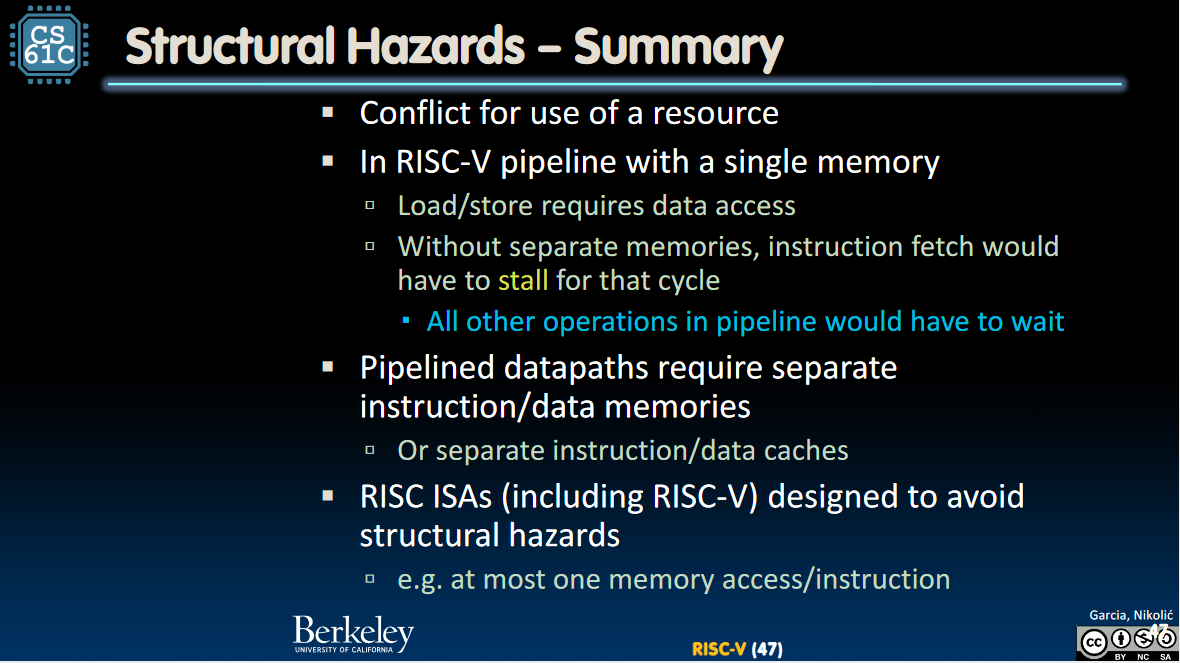

Summary

Data Hazards

Solutions:

• Stall
• Forwarding（aka Bypassing）

Load Data Hazard

Slot after a load is called a load delay slot

• If that instruction uses the result of the load, then the hardware will stall for one cycle
• Equivalent to inserting an explicit nop in the slot
• Performance loss

Idea:

• Put unrelated instruction into load delay slot
• No performance loss!

We can reorder code to avoid use of load result in the next instr!

Control Hazard

Observation

• If branch not taken, then instructions fetched sequentially after branch are correct
• If branch or jump taken, then need to flush incorrect instructions from pipeline by converting to NOPs

Reducing Branch Penalties

• Every taken branch in simple pipeline costs 2 dead cycles
• To improve performance, use “branch prediction” to guess which way branch will go earlier in pipeline
• Only flush pipeline if branch prediction was incorrect
